CNC Equipment & Capabilities

Milling

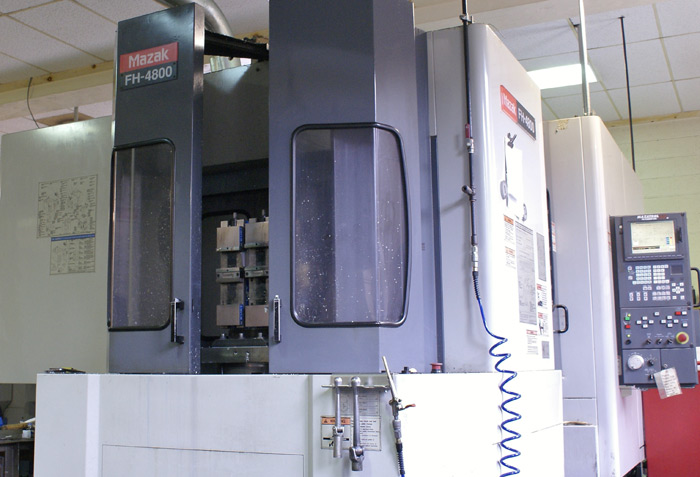

MAZAK FH-4800 HORIZONTAL MACHINING CENTER WITH MAZATROL 640 CONTROL
Spindle:  12,000 RPM, 20 H.P.
Travel:   X-axis 24” x Z-axis 20”
Pallet Size:  15.75” x 15.75”
Equipped with thru the spindle coolant, 80 tool magazine and (2) indexable pallets with full 4th axis rotation programmable to .001 degree rotation

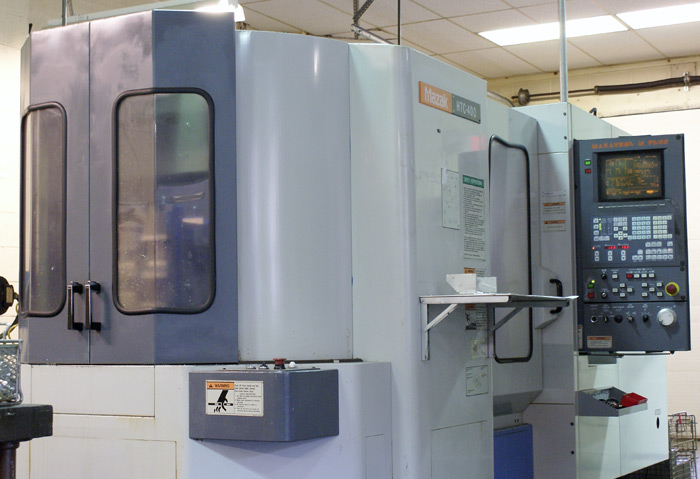

MAZAK HTC-400 HORIZONTAL MACHINING CENTER WITH M-PLUS CONTROL
Spindle: 10,000 RPM, 15 H.P.
Travel: X-axis 22” x Y-axis 20” x Z-axis 20”
Pallet Size: 15.75” x 15.75”
Equipped with thru the spindle coolant and (2) indexable pallets, programmable rotation in fifteen degree increments

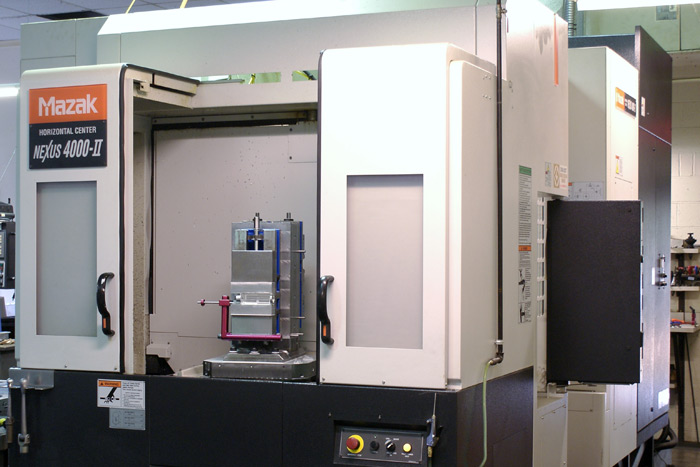

MAZAK NEXUS 4000II HORIZONTAL MACHINING CENTER WITH MAZATROL MATRIX CONTROL
Spindle: 12000 RPM, 40 H.P.
Travel: X-axis 22.00” x Y-axis 24.8” x Z-axis 25.2”
Pallet Size: 15.74” x 15.74”
Equipped with thru the spindle coolant, 80 tool magazine and (2) indexable pallets with full 4th axis rotation programmable to .001 degree rotation

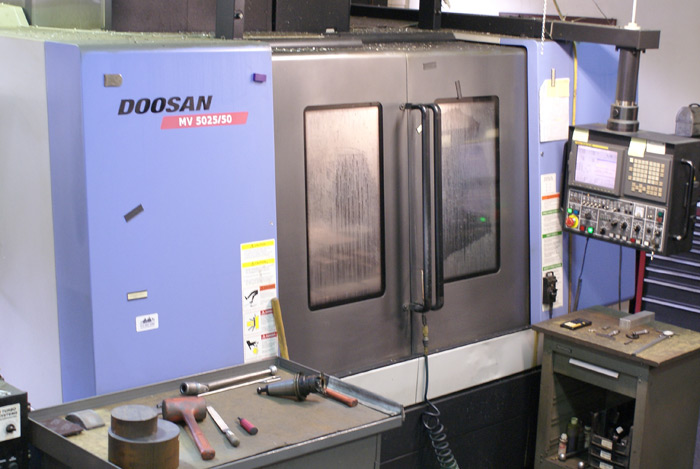

DOOSAN MV5025/50 VERTICAL VERTICAL MACHINING CENTER WITH 21i MB CONTROL
Spindle: ct50, 6000 RPM, 25 H.P.
Travel: X-axis 50.00” Y-axis 26.3” x Z-axis 24.6”
Equipped with thru the spindle coolant and 24 station dual arm changer

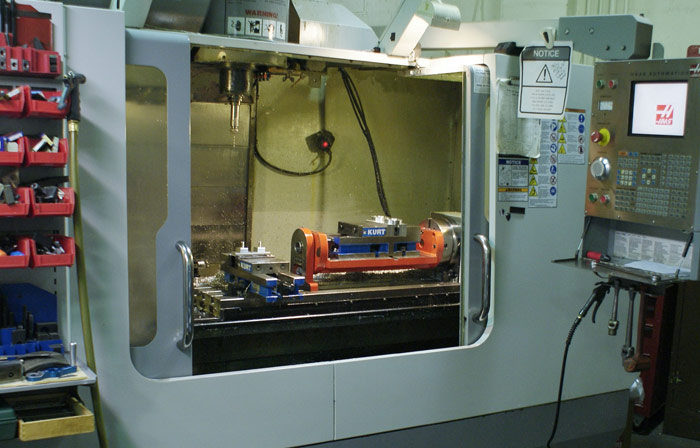

HAAS VF-2 VMC VERTICAL MACHINING CENTER WITH FANUC CONTROL
Spindle: VF50 TAPER, 12000 RPM, 30 H.P
Travel: X-axis 30.00” Y-axis 16.0” Z-axis 20.0”
Equipped with thru the spindle coolant, 24 high speed tool changer, 4th axis rotary table and trunion mount

HAAS VF-3 VMC VERTICAL MACHINING CENTER WITH FANUC CONTROL
Spindle: VF50 TAPER, 12000 RPM, 30 H.P
Travel: X-axis 40.00” Y-axis 20.0” Z-axis 25.0”
Equipped with thru the spindle coolant, 40 high speed tool changer, 4th axis rotary table with optional trundle, quick probe

Turning

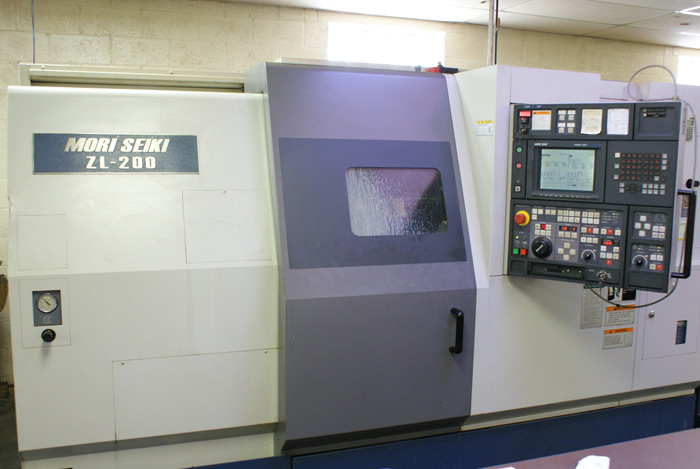

MORI SEIKI ZL200 SMC DUAL SPINDLE 4-AXIS MILL/TURN CENTER WITH MORI MSC-501 CONTROL
Main spindle: 8” Chuck, 2.6” spindle bore, 4,000 R.P.M, 15 H.P.
Sub spindle: 6” Chuck, 3,500 R.P.M., 10 H.P.
Equipped with 12 station upper turret, 8 station lower turret (all positions capable of live milling as well as conventional turning), sub spindle has part ejector and overhead parts catcher

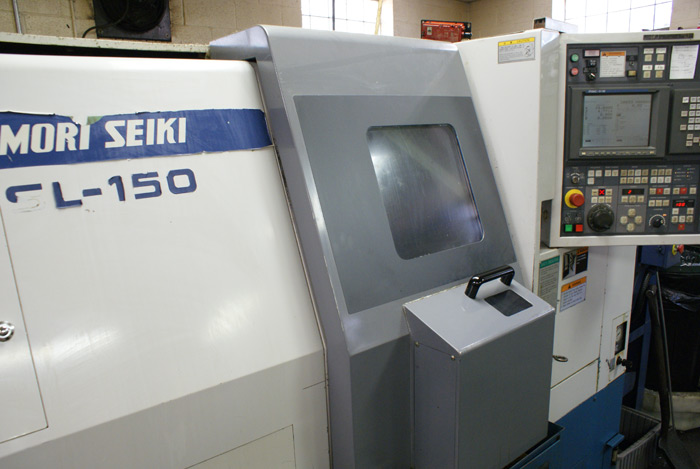

MORI SEIKI SL 150 SMC DUAL SPINDLE MILL/TURN CENTER WITH MORI  MSC-518 CONTROL
Main spindle: 6” Chuck, 1.7” spindle bore, 4,000 R.P.M., 7.5 H.P.
Sub spindle: 5” Chuck, 3,500 R.P.M, 5 H.P.
Equipped with 12 station turret (all positions capable of live milling as well as conventional turning), sub spindle has part ejector and parts catcher

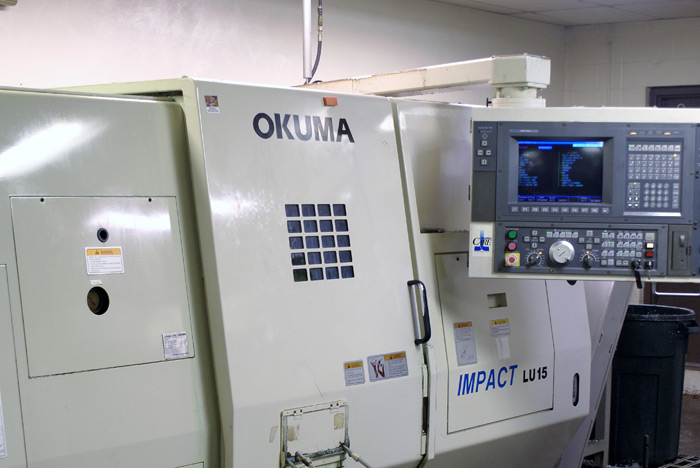

OKUMA LU 15-2SC 4-AXIS LATHE WITH OSP 7000L CONTROL
Capacity:
 11” dia. x 24” length, 2.6” spindle bore
Spindle: 4,500 R.P.M., 15 H.P.
Equipped with 8” chuck; 12 station upper turret, 8 station lower turret,

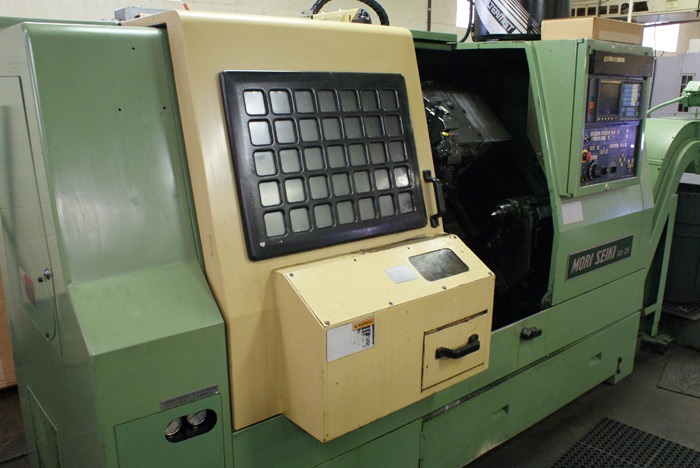

MORI-SEIKI SL-25B/500 CNC TURNING CENTER WITH FANUC OT-F CONTROL
Capacity:  10.236” dia. x 20.866” length, 2.6” dia. spindle bore
Spindle: 3,500 R.P.M., 15 H.P.
Equipped with 10” dia. chuck, 10 station turret, parts catcher and 2” dia. bar puller

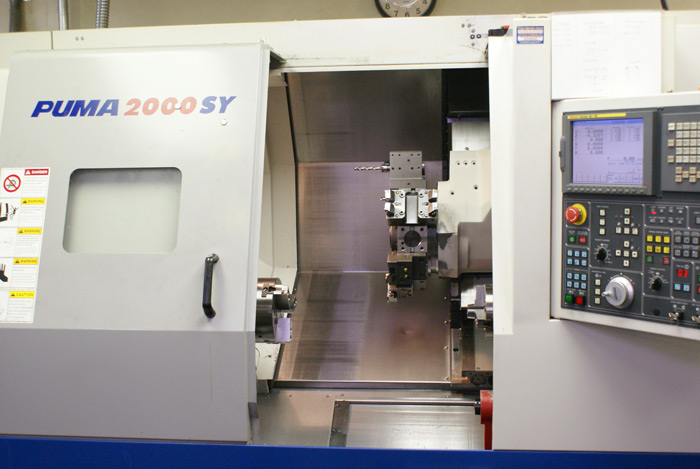

DOOSAN PUMA 2000SY TURNING CENTER WITH 18Itb FANUC CONTROL
Main spindle: 8” Chuck, 2.625” spindle bore, 4,500 R.P.M, 20 H.P.
Capacity:  13” dia. x 20” length, 2.6
Sub spindle: 6” Chuck, 6,000 R.P.M., 10 H.P.
Equipped with 12 station turret, (all positions capable of live milling as well as conventional turning),Capable of milling due to a Y Axis, sub spindle has part ejector parts catcher

Wire EDM

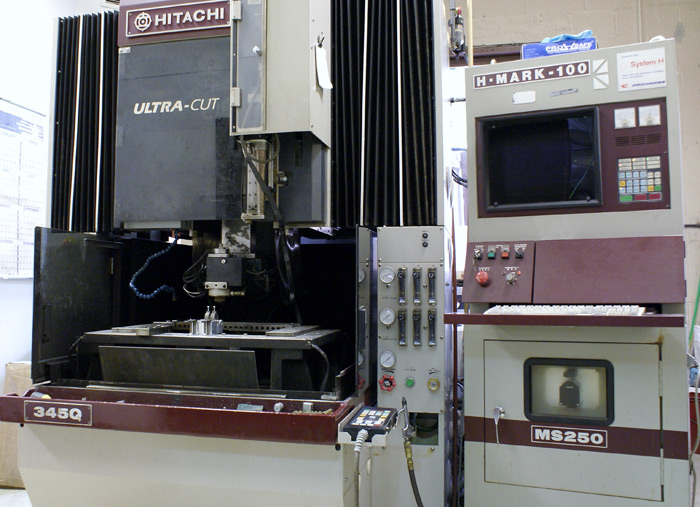

HITACHI 345 Q TRAVELLING WIRE EDM
Travel: X-axis 18” x Y-axis 12” x 12” maximum thickness with automatic wire threading, full 4-axis and 30 degree taper cutting capabilities

Laser Cutting

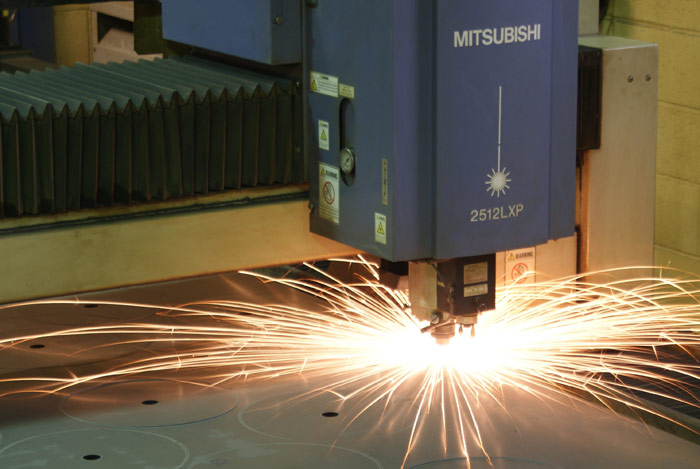

MITSUBISHI 2512 LXP WITH MITSUBISHI LC10BV CONTROL
2000 watt , 48” x 96” plate/sheet capacity with pallet changer, 5/8” thick common steel, 3/8 thick stainless steel with Dynacom downward flow SFC Series short drum Collector.

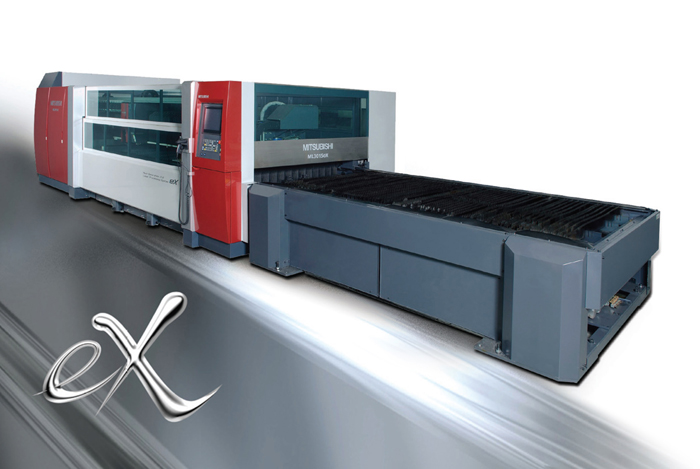

MITSUBISHI eXS 3015 CO2 LASER WITH 700 SERIES CNC CONTROL
5th generation flying optic CO2 laser. 2.7KW rated output with  3-axis cross flow SD excitation. 5 ft x 10 ft sheet capacity with pallet changer. Up to 5/8’'’ thick capacity.

Software & Computer

OFF-LINE PROGRAMMING SYSTEM

  • GIBBS CAM Computer Aided Machining Software with full 3-D Milling, 4-Axis and Wire-EDM capabilities (Updated To current versions).
  • BOBCAD Computer Aided Machining Software
  • AUTCAD 2012 LT
  • Various office Programs

COMPUTER NETWORK
A Windows 2008 server network is interfaced to all CNC equipment for DNC capabilities and allows all computer users to share information.

Inspection

A full complement of gage and inspection equipment to ensure quality control is maintained in a temperature controlled room. Inspection equipment includes 0”-20” internal and external micrometers. Digital profilometer, various precision gage block set, height gages, various sets of gage pins, 4’ x 3’ granite surface plate, 3 smaller shop size granite surface plates, depth gages, bore gages, etc.

MITUTOYO COORDINATE MEASURING MACHINE
Model : CRT-P M574
Travel:  X-axis 19.69” x Y-axis 27.56” x Z-axis 15.75”

BROWN AND SHARPE COORDINATE MEASURING MACHINE
Model: Gage 2000
Travel:  X-axis 18.00” x Y-axis 20.00” x Z-axis 16.00”

NIKON OPTICAL COMPARATOR
14” Dia., Digital Readouts, 10x, 20x, 50x
